8  The Julia Type System

One can write extensive programs in Julia without using a single type declaration. This is, of course, intentional and designed to simplify users’ work.

However, for a deeper understanding we will now examine the underlying type system.

8.1 The Type Hierarchy: A Case Study with Numeric Types

The type system has the structure of a tree whose root is the type Any. The functions subtypes() and supertype() can be used to explore the tree. subtypes() displays all child nodes, while supertype() shows the parent.

subtypes(Int64)
Type[]

The result is an empty list of types. Int64 is a so-called concrete type with no subtypes.

Let’s now traverse this branch upward to the root (in computer science, trees are typically inverted).

supertype(Int64)
Signed
supertype(Signed)
Integer
supertype(Integer)
Real
supertype(Real)
Number
supertype(Number)
Any

This would have been faster, by the way: The function supertypes() (with plural-s) shows all ancestors.

supertypes(Int64)
(Int64, Signed, Integer, Real, Number, Any)

We can now examine the nodes:

subtypes(Real)
4-element Vector{Any}:
 AbstractFloat
 AbstractIrrational
 Integer
 Rational

A simple recursive function can display the entire subtree:

function show_subtype_tree(T, i=0)
    println("       "^i, T)
    for Ts ∈ subtypes(T)
        show_subtype_tree(Ts, i+1)
    end
end

show_subtype_tree(Number)
Number
       Complex
       Real
              AbstractFloat
                     BigFloat
                     Float16
                     Float32
                     Float64
              AbstractIrrational
                     Irrational
              Integer
                     Bool
                     Signed
                            BigInt
                            Int128
                            Int16
                            Int32
                            Int64
                            Int8
                     Unsigned
                            UInt128
                            UInt16
                            UInt32
                            UInt64
                            UInt8
              Rational

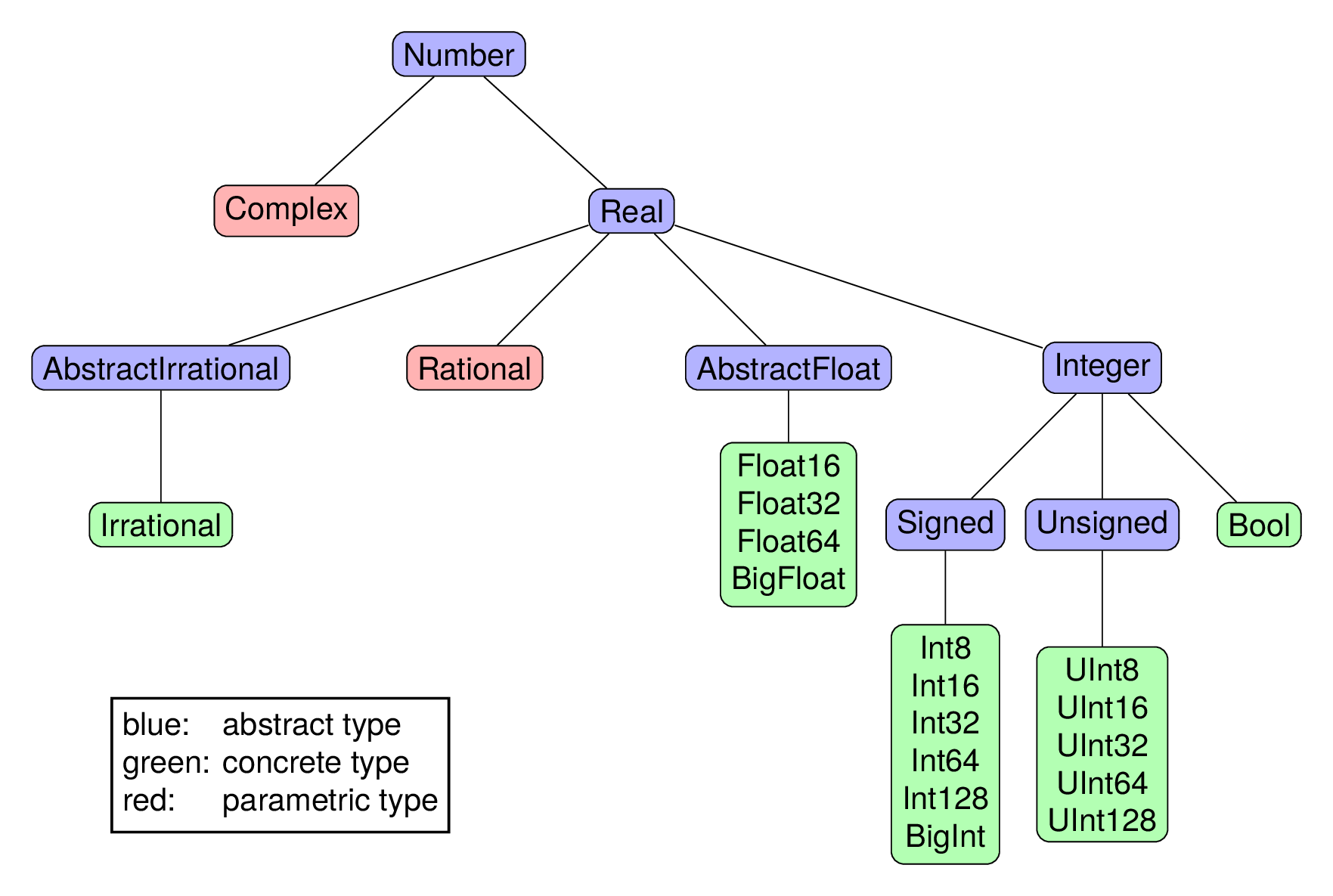

Below is the same hierarchy as an image (made with LaTeX/TikZ):

Beyond numeric types, Julia includes many others. The number of direct descendants (children) of Any is

length(subtypes(Any))
604

This number increases with (almost) every package loaded via using ....

8.2 Abstract and Concrete Types

  • An object always has a concrete type.
  • Concrete types have no more subtypes, they are always the “leaves” of the tree.
  • Concrete types specify a concrete data structure.
  • Abstract types cannot be instantiated; that is, no objects can have an abstract type directly.
  • They define a set of concrete types and common methods for these types.
  • They can therefore be used in the definition of function types, argument types, element types of composite types, etc.

To declare and test the relationships in the type hierarchy, Julia provides a special operator:

Int64 <: Number
true

To test whether an object has a certain type (or an abstract supertype of it), isa(object, typ) is used. It is usually used in infix form and reads as the question is x a T?.

x = 17.2

42 isa Int64,  42 isa Real,  x isa Real,   x isa Float64,   x isa Integer
(true, true, true, true, false)

Since abstract types do not define data structures, they are simple to define. Either they are derived directly from Any:

abstract type MySuperType end

supertype(MySuperType)
Any

or from another abstract type:

abstract type MySpecialNumber <: Integer end

supertypes(MySpecialNumber)
(MySpecialNumber, Integer, Real, Number, Any)

By this definition, the abstract type is attached at a specific point in the type tree.

8.3 The Numeric Types Bool and Irrational

Though appearing in the numeric type tree, these types warrant brief explanation:

Bool is numeric in the sense that true=1, false=0:

true + true + true, false - true, sqrt(true), true/4
(3, -1, 1.0, 0.25)

Irrational is the type of certain predefined constants, such as π and ℯ. According to the documentation, Irrational is a “Number type representing an exact irrational value, which is automatically rounded to the correct precision in arithmetic operations with other numeric quantities”.

8.4 Union Types

When the tree structure is insufficient, abstract types can be defined as a union of arbitrary (abstract and concrete) types.

IntOrString = Union{Int64,String}
Union{Int64, String}
NoteExample

The command methods(<) reveals over 70 methods for the comparison operator, including methods with union type arguments, such as:

 <(x::Union{Float16, Float32, Float64}, y::BigFloat)

a method comparing fixed-width machine numbers with arbitrary precision numbers.

8.5 Composite Types: struct

A struct defines a concrete type as a collection of named fields.

abstract type Point end

mutable struct Point2D <: Point
    x :: Float64
    y :: Float64
end

mutable struct Point3D <: Point
    x :: Float64
    y :: Float64
    z :: Float64
end

As seen with expressions like x = Int8(33), type names can serve as constructors:

p1 = Point2D(1.4, 3.5)
Point2D(1.4, 3.5)
p1 isa Point3D,  p1 isa Point2D,   p1 isa Point
(false, true, true)

The fields of a struct are accessed by name using the . operator.

p1.y
3.5

Because we declared our struct as mutable, we can modify the object p1 by assigning new values to the fields.

p1.x = 3333.4
p1
Point2D(3333.4, 3.5)

The dump() function displays structure information for types and objects.

dump(Point3D)
mutable struct Point3D <: Point
  x::Float64
  y::Float64
  z::Float64
 dump(p1)
Point2D
  x: Float64 3333.4
  y: Float64 3.5

8.6 Functions and Multiple Dispatch

NoteObjects, Functions, and Methods

In classical object-oriented languages (C++, Java, Python), methods are bound to objects.

Julia takes a different approach: methods belong to functions, not to objects. Constructors (functions sharing a type’s name that create instances of that type) are the only exception.

When we define a new type, we can define functions specific to that type but we can also add additional methods to existing functions.

  • A single functions can have multiple methods for different argument types.
  • At call time, Julia selects the most specific method matching the concrete argument types (multiple dispatch).
  • Core functions in Julia often have numerous predefined methods and third-party packages or user code can extend them adding additional methods.

We define a distance function with two methods:

function distance(p1::Point2D, p2::Point2D)
    sqrt((p1.x-p2.x)^2 + (p1.y-p2.y)^2)
end

function distance(p1::Point3D, p2::Point3D)
    sqrt((p1.x-p2.x)^2 + (p1.y-p2.y)^2 + (p1.z-p2.z)^2)
end
distance (generic function with 2 methods)
distance(p1, Point2D(2200, -300))
1173.3319266090054

As mentioned earlier, methods() shows the method table of a function:

methods(distance)
# 2 methods for generic function distance from Main.Notebook:

The @which macro, applied to a function call with concrete arguments, shows which method is selected for these arguments:

@which sqrt(3.3)
sqrt(x::Union{Float32, Float64}) in Base.Math at math.jl:626
z = "Hello" * '!'
println(z)

@which "Hello" * '!'
Hello!
*(s1::Union{AbstractChar, AbstractString}, ss::Union{AbstractChar, AbstractString}...) in Base at strings/basic.jl:262

Methods can also have abstract types as arguments:

"""
  Calculate the angle ϕ (in degrees) of the polar coordinates (2D) or
    spherical coordinates (3D) of a point
"""
function phi_angle(p::Point)
    atand(p.y, p.x)
end

phi_angle(p1)
0.0601593431937626

Text enclosed in triple quotes immediately before the function definition is automatically integrated into Julia’s help database:

?phi_angle
search: phi_angle angle

Calculate the angle ϕ (in degrees) of the polar coordinates (2D) or spherical coordinates (3D) of a point

With multiple dispatch, the method is applied that is the most specific among all matching ones. Here is a function with several methods (all but the last written in short assignment form):

f(x::String, y::Number)  = "Args: String + Number"
f(x::String, y::Int64)   = "Args: String + Int64"
f(x::Number, y::Int64)   = "Args: Number + Int64"
f(x::Int64,  y:: Number) = "Args: Int64  + Number"
f(x::Number)             = "Arg: a Number"

function f(x::Number, y::Number, z::String)
    return "Arg: 2 × Number + String"
end
f (generic function with 6 methods)

The first two methods match; the second is chosen as it is more specific (Int64 <: Number):

f("Hello", 42)
"Args: String + Int64"

Ambiguities may arise if methods are defined poorly:

f(42, 42)
MethodError: f(::Int64, ::Int64) is ambiguous.

Candidates:
  f(x::Int64, y::Number)
    @ Main.Notebook ~/Julia/Book26/JuliaBook/chapters/types.qmd:322
  f(x::Number, y::Int64)
    @ Main.Notebook ~/Julia/Book26/JuliaBook/chapters/types.qmd:321

Possible fix, define
  f(::Int64, ::Int64)

Stacktrace:
 [1] top-level scope
   @ ~/Julia/Book26/JuliaBook/chapters/types.qmd:336
Error showing value of type MethodError
StackOverflowError:
Stacktrace:
 [1] show(io::IOContext{IOBuffer}, x::MethodError) (repeats 79983 times)
   @ Main.Notebook ~/Julia/Book26/JuliaBook/chapters/types.qmd:25

8.7 Parametric Numeric Types: Rational and Complex

  • For rational numbers (fractions), Julia uses // as an infix constructor:
@show Rational(23, 17)    4//16 + 1//3;
Rational(23, 17) = 23//17
4 // 16 + 1 // 3 = 7//12
  • The imaginary unit \(\sqrt{-1}\) is denoted im
@show Complex(0.4)     23 + 0.5im/(1-2im);
Complex(0.4) = 0.4 + 0.0im
23 + (0.5im) / (1 - 2im) = 22.8 + 0.1im

Like Point2D, both Rational and Complex consist of two fields: numerator and denominator or real and imaginary parts.

However, the type of these fields is not completely fixed. Rational and Complex are parametric types.

x = 2//7
@show typeof(x);
typeof(x) = Rational{Int64}
y = BigInt(2)//7
@show typeof(y)    y^48;
typeof(y) = Rational{BigInt}
y ^ 48 = 281474976710656//36703368217294125441230211032033660188801
x = 1 + 2im
typeof(x)
Complex{Int64}
y = 1.0 + 2.0im
typeof(y)
ComplexF64 (alias for Complex{Float64})

The concrete types Rational{Int64}, Rational{BigInt},…, Complex{Int64}, Complex{Float64}},… are subtypes of Rational and Complex, respectively.

Rational{BigInt} <: Rational
true

The definitions look roughly like this:

struct MyComplex{T<:Real} <: Number
    re::T
    im::T
end

struct MyRational{T<:Integer} <: Real
    num::T
    den::T
end

The first definition says:

  • MyComplex has two fields re and im, both of the same type T.
  • This type T must be a subtype of Real.
  • MyComplex and all its variants like MyComplex{Float64} are subtypes of Number.

and the second says analogously:

  • MyRational has two fields num and den, both of the same type T.
  • This type T must be a subtype of Integer.
  • MyRational and its variants are subtypes of Real.

Since ℚ\(\subset\) ℝ (or Rational <: Real in Julia notation), the components of a complex number can also be rational:

z = 3//4 + 5im
dump(z)
Complex{Rational{Int64}}
  re: Rational{Int64}
    num: Int64 3
    den: Int64 4
  im: Rational{Int64}
    num: Int64 5
    den: Int64 1

These structures are declared without the mutable attribute, making them immutable:

x = 2.2 + 3.3im
println("The real part is: $(x.re)")

x.re = 4.4
The real part is: 2.2
setfield!: immutable struct of type Complex cannot be changed
Stacktrace:
 [1] setproperty!(x::ComplexF64, f::Symbol, v::Float64)
   @ Base ./Base_compiler.jl:58
 [2] top-level scope
   @ ~/Julia/Book26/JuliaBook/chapters/types.qmd:426
Error showing value of type ErrorException
StackOverflowError:
Stacktrace:
 [1] show(io::IOContext{IOBuffer}, x::ErrorException) (repeats 79983 times)
   @ Main.Notebook ~/Julia/Book26/JuliaBook/chapters/types.qmd:25

This is standard practice. The object 9 (of type Int64) is also immutable. The following, of course, still works:

x += 2.2
4.4 + 3.3im

Here, a new object of type Complex{Float64} is created and x then references this new object.

The type system’s flexibility invites experimentation. Here we define a struct that can contain either a machine number or a pair of integers:

struct MyParms{T <: Union{Float64, Tuple{Int64, Int64}}}
    param::T
end

p1 = MyParms(33.3)
p2 = MyParms( (2, 4) )

@show p1.param  p2.param;
p1.param = 33.3
p2.param = (2, 4)

8.8 Types as Objects

  1. Types are also objects. Each type is an instance of one of three “meta-types”:

    • Union (union types)
    • UnionAll (parametric types)
    • DataType (all concrete and other abstract types)
@show    23779 isa Int64       Int64 isa DataType;
23779 isa Int64 = true
Int64 isa DataType = true
@show  2im isa Complex         Complex isa UnionAll;
2im isa Complex = true
Complex isa UnionAll = true
@show  2im isa Complex{Int64}     Complex{Int64} isa DataType;
2im isa Complex{Int64} = true
Complex{Int64} isa DataType = true

These three concrete “meta-types” are, by the way, subtypes of the abstract “meta-type” Type.

subtypes(Type)
4-element Vector{Any}:
 Core.TypeofBottom
 DataType
 Union
 UnionAll
  1. Types can be assigned to a variable:
x3 = Float64
@show   x3(4)      x3 <: Real   x3==Float64  ;
x3(4) = 4.0
x3 <: Real = true
x3 == Float64 = true

This demonstrates that Julia’s style guidelines such as “Types and type variables start with uppercase letters, other variables and functions are written in lowercase.” are conventions, not language-enforced rules.

They should still be followed for readability.

Declaring such assignments with const creates a type alias.

const MyCmplxF64 = MyComplex{Float64}

z = MyCmplxF64(1.1, 2.2)
typeof(z)
MyComplex{Float64}
  1. Types can be function arguments.
function myf(x, S, T)
    if S <: T
        println("$S is subtype of $T")
    end
    return S(x)
end

z = myf(43, UInt16, Real)

@show z  typeof(z);
UInt16 is subtype of Real
z = 0x002b
typeof(z) = UInt16

To define this function with type signatures, we can write

function myf(x, S::Type, T::Type) ... end

However, the (equivalent) special syntax

function myf(x, ::Type{S}, ::Type{T}) where {S,T} ... end

is more common. Here we can also impose restrictions on the permissible values of the type variables S and T in the where clause.

How can we define a special method of myf that should only be called when S and T are equal to Int64? This is possible as follows:

function myf(x, ::Type{Int64}, ::Type{Int64}) ... end

Type{Int64} acts like a “meta-type”, whose only instance is the type Int64.

  1. There are numerous functions with types as arguments. We have already seen <:(T1, T2), supertype(T), supertypes(T), subtypes(T). Other useful operations include typejoin(T1,T2) (next common ancestor in the type tree) and tests like isconcretetype(T), isabstracttype(T), isstructtype(T).

8.9 Invariance of Parametric Types

Can non-concrete types also be used as parameters in parametric types? Are there Complex{AbstractFloat} or Complex{Union{Float32, Int16}}?

Yes, such types exist. They are concrete, and objects can be instantiated.

z5 = Complex{Integer}(2, 0x33)
dump(z5)
Complex{Integer}
  re: Int64 2
  im: UInt8 0x33

This is a heterogeneous composite type. Each component has an individual type T, for which T<:Integer holds.

Note that

Int64 <: Integer
true

but it does not hold that

Complex{Int64} <: Complex{Integer}
false

These types are both concrete. Therefore, they cannot stand in a sub/supertype relation to each other in Julia’s type hierarchy. Julia’s parametric types are in theoretical computer science terminology, invariant. (If S<:T implied ParamType{S} <: ParamType{T}, this would be covariance.)

8.10 Generic Functions

The usual (and in many cases recommended!) programming style in Julia is writing generic functions:

function fmm(x, y)
    return x * x * y
end
fmm (generic function with 1 method)

This function works with any types supporting the required operations.

fmm( Complex(2,3), 10),  fmm("Hello", '!')
(-50 + 120im, "HelloHello!")

Type annotations can restrict applicability or implement different methods for different types:

function fmm2(x::Number, y::AbstractFloat)
    return x * x * y
end

function fmm2(x::String, y::String)
    println("Sorry, I don't take strings!")
end


@show fmm2(18, 2.0)   fmm2(18, 2);
fmm2(18, 2.0) = 648.0
MethodError: no method matching fmm2(::Int64, ::Int64)
The function `fmm2` exists, but no method is defined for this combination of argument types.

Closest candidates are:
  fmm2(::Number, ::AbstractFloat)
   @ Main.Notebook ~/Julia/Book26/JuliaBook/chapters/types.qmd:596
  fmm2(::String, ::String)
   @ Main.Notebook ~/Julia/Book26/JuliaBook/chapters/types.qmd:600

Stacktrace:
 [1] top-level scope
   @ ~/Julia/Book26/JuliaBook/chapters/types.qmd:605
Important

Explicit type annotations are almost always irrelevant for the speed of the code!

This is one of the most important advantages of Julia.

Once a function is called for the first time with certain types, a specialized form of the function is generated and compiled for these argument types. Thus, generic functions are usually just as fast as the specialized functions one writes in other languages.

Generic functions enable seamless integration across packages and support high-level abstraction.

A simple example: The Measurements.jl package defines a new data type Measurement, a value with error, and the arithmetic of this type. Thus, generic functions work automatically:

using Measurements

x = 33.56±0.3
y = 2.3±0.02

fmm(x, y)
2590.0 ± 52.0

8.11 Type Parameters in Function Definitions: the where Clause

We want to write a function that works for all complex integers (and only these), e.g., an implementation of prime factorization in ℤ[i]. The definition

function isprime(x::Complex{Integer}) ... end

does not give the desired result, as we saw in Section 8.9. The function would not work for an argument of type Complex{Int64}, since the latter is not a subtype of Complex{Integer}.

We must introduce a type variable. The where clause serves this purpose.

function isprime(x::Complex{T}) where {T<:Integer}
     ...
end

This is to be read as:

“The argument x should be one of the types Complex{T}, where the type variable T can be any subtype of Integer.”

Another example:

function kgV(x::Complex{T}, y::Complex{S}) where {T<:Integer, S<:Integer}
     ...
end

The arguments x and y can have different types, each a subtype of Integer.

If there is only one where clause as in the last example, one can omit the curly braces and write

function isprime(x::Complex{T}) where T<:Integer
     ...
end

This can still be shortened to

function isprime(x::Complex{<:Integer})
     ...
end

These different variants can be confusing, but it is only syntax.

C1 = Complex{T} where {T<:Integer}
C2 = Complex{T} where T<:Integer
C3 = Complex{<:Integer}

C1 == C2 == C3
true

Short syntax for simple cases; extended syntax for complex variants.

Finally, note that where T is shorthand for where T<:Any, which introduces a completely unrestricted type variable. Thus, something like this is possible:

function fgl(x::T, y::T) where T
    println("Congratulations! x and y are of the same type!")
end
fgl (generic function with 1 method)

This method requires that both arguments have exactly the same type; otherwise, any type is accepted.

fgl(33, 44)
Congratulations! x and y are of the same type!
fgl(33, 44.0)
MethodError: no method matching fgl(::Int64, ::Float64)
The function `fgl` exists, but no method is defined for this combination of argument types.

Closest candidates are:
  fgl(::T, ::T) where T
   @ Main.Notebook ~/Julia/Book26/JuliaBook/chapters/types.qmd:729

Stacktrace:
 [1] top-level scope
   @ ~/Julia/Book26/JuliaBook/chapters/types.qmd:741
Error showing value of type MethodError
StackOverflowError:
Stacktrace:
 [1] show(io::IOContext{IOBuffer}, x::MethodError) (repeats 79983 times)
   @ Main.Notebook ~/Julia/Book26/JuliaBook/chapters/types.qmd:25
